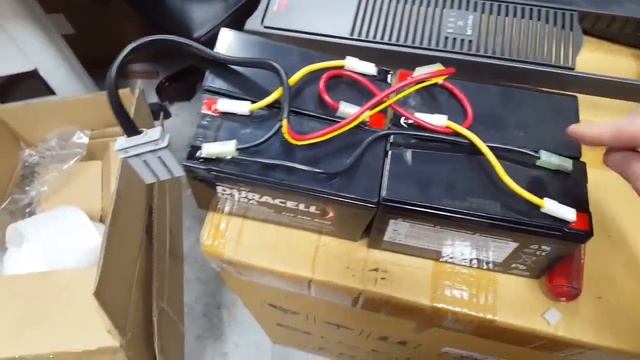

APC Smart UPS SC 1500 Battery Wiring Diagram

A really good article on Series-Parallel Circuits.  Ok So I freaked out a little bit and forgot to take a picture of the wiring before I took it apart. These batteries are stacked so you cannot see the wiring without breaking it apart. I searched and couldnt find any battery diagram for the APC rack mount UPS. I had the wires laid out and couldnt figure out where the main black wire went and realized there was a connector to connect the two black wires. So basically you have a series-parallel circuit here giving you 24 volts and plenty of amperage and I have laid if you forget to take a picture of the layout. If this helped click here: Please Subscribe: ,

#
